Preorder
PTZ Cameras

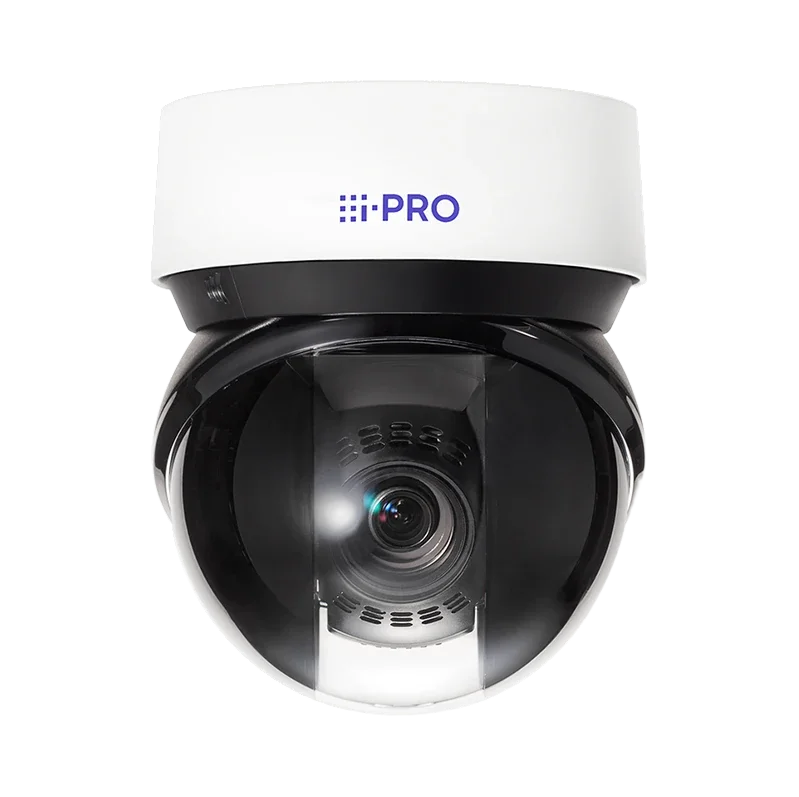

I-Pro WV-X66700-Z3LS
Camera type: PTZResolution: 4K (8MP)IR illumination: 200 mImage sensor: 1/2.8″ CMOSScanning area: 5.57 mm (H) × 3.13 mm (V); {7/32 inches (H) × 1/8 inches (V)}
Price265 200 ₴
1
Made to order. We will confirm the lead time after you place the order.
Fast delivery Quality support 12-month warranty Turnkey setup
A rapid outdoor i-PRO PTZ camera with 4K resolution, 30x optical zoom, built-in IR illumination and an AI engine. It suits perimeters, roads, ports and large open areas, including coastal sites exposed to salt spray.
The camera tracks people and vehicles automatically, and analytics run on the camera itself, with no separate server.
Key features
- 30x zoom: 4.5–135 mm lens, extra zoom up to 90x at 1280×720
- IR illumination: built in, range up to 200 m
- Fast drive: pan up to 700°/s and tilt up to 500°/s between presets, 256 presets
- Image stabilizer: built-in gyro sensor
- Salt resistance: housing coating per ISO 14993, stainless steel screws
- Rugged housing: IP66, NEMA 4X, IK10, wind resistance up to 40 m/s
- Cybersecurity: FIPS 140-2 Level 3 module (NXP EdgeLock SE050F), signed firmware, device certificate
- Compatibility: ONVIF Profile G, M, S, T, NDAA compliant
- microSD recording: up to 512 GB, backup recording on network failure
AI analytics
- AI auto tracking: the camera follows a target with pan, tilt and zoom
- Up to 3 apps on the camera: people, vehicle and face detection, AI VMD, privacy guard, occupancy and scene change detection
- Sound classification: gunshot, yell, vehicle horn, glass break
- Third-party apps: available through the i-PRO Edge AI platform
Camera
Camera typePTZ
Resolution4K (8MP)
IR illumination200 m
Image sensor1/2.8″ CMOS
Scanning area5.57 mm (H) × 3.13 mm (V); {7/32 inches (H) × 1/8 inches (V)}
Minimum IlluminationColor: 0.13 lx (30IRE, F1.8, 1/30s, AGC:11), 0.19 lx (50IRE); BW: 0 lx (50IRE, IR LED On), 0.1 lx (50IRE)
White balanceATW1 / ATW2 / AWC
Shutter speed[30 fps mode] 1/30 Fix to 1/10000 Fix; [25 fps mode] 1/25 Fix to 1/10000 Fix
Maximum shutter[30 fps Mode]Max.1/4000s to Max.16/30s; [25 fps Mode]Max.1/4000s to Max.16/25s
Intelligent AutoOn / Off
Super DynamicOn / Off, The level can be set in the range of 0 to 31.
Dynamic RangeMax.132 dB (Super Dynamic : On, Level 31)
Adaptive Black StretchThe level can be set in the range of 0 to 255.
Back light / high light compensationBLC (Back light compensation) / HLC (High light compensation) / Off; The level can be set in the range of 0 to 31 (only when Super dynamic / Intelligent Auto : Off)
Fog compensationOn / Off, The level can be set in the range of 0 to 8; (only when Intelligent auto / auto contrast adjust : Off)
Maximum gain (AGC)The level can be set in the range of 0 to 11.
Color / B&W (ICR)Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR LED lightHigh/ Middle/ Low/ Off; Maximum irradiation distance :; 280 m {Approx. 920 ft} (30IRE)*; 200 m {Approx. 660 ft} (50IRE); ※Converted value
Digital noise reductionThe level can be set in the range of 0 to 255.
Video motion detection (VMD)F1.8 – close
Scene change detection (SCD)On / Off, 1 areas available
Audio detectionOn / Off
AI Sound ClassificationGunshot, Yell, Vehicle horn, Glass break
AI AnalyticsAI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non-mask Detection, AI Occupancy Detection, AI Scene Change Detection
AI Auto TrackingYes
Privacy zoneOn / Off, Up to 32 zones available
VIQSOn / Off, Up to 8 zones available
Image stabilizerOn / Off (Built-in gyro sensor)
Image rotationOn / Off
Camera title (OSD)On / Off, Up to 40 characters (alphanumeric characters, marks)
Lens
Optical zoom30x
Zoom and focus30x (Motorized zoom / Motorized focus)
Extra zoomMax. 90x; (30x - 90x when resolution is 1280x720)
Digital zoom90x - 480x
Focal length4.5mm - 135mm; (3/16 inches - 5-5/16 inches)
Angular Field of View[16 : 9 mode]; Horizontal : 2.5° (TELE) – 62° (WIDE), Vertical : 1.4° (TELE) – 37° (WIDE)
Maximum Aperture Ratio1 : 1.8 (WIDE) – 1 : 4.7 (TELE)
Focus range3.0 m {118-1/8 inches} –∞
Aperture rangeF1.8 – close
DORI
Detect (25 ppm)Wide: 127.8 m / 419.3 ft, Tele: 3519.7 m / 11547.6 ft
Observe (62.5 ppm)Wide: 51.1 m / 167.7 ft, Tele: 1407.9 m / 4619.0 ft
Recognize (125 ppm)Wide: 25.6 m / 83.9 ft, Tele: 703.9 m / 2309.5 ft
Identify (250 ppm)Wide: 12.8 m / 41.9 ft, Tele: 352.0 m / 1154.8 ft
System on Chip (SoC)
System on Chip (SoC)Ambarella CV22
Adjusting angle
Adjusting angleHorizontal : 360° Endless Panning, TILT : -20° to +90°, Yaw : 0°
Pan / tilt
Panning range360° endless
Panning speedManual: Approx. 0.065°/s – 150°/s; Preset: Up to approx. 700°/s
Tilting RangeOperational range -20° – +90°
Tilting SpeedManual: Approx. 0.065°/s –150°/s Preset: Up to approx. 500°/s
Preset positions256
Auto modeAuto track, Auto pan, Preset sequence, Patrol
Self return10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min
Active ClearSightYes
Browser GUI
GUI / setup menu languageEnglish, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
BrowserMicrosoft Edge, Firefox, Google Chrome
Network
Network IF10/100 Mbit/s, RJ45
Stream resolution (H.265 / H.264 / JPEG)[16:9 mode (30 fps mode) ]; [16:9 mode (25 fps mode) ]; 3840x2160/ 2560x1440/ 1920x1080/; 1280x720/ 640x360/ 320x180
H.265/H.264 transmission mode / type[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort; [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
JPEG[Image Quality] 10 steps
Smart CodingGOP control: Off / Low (1-8 s) / Mid (4-16 s) / Advanced (fixed 60 s, H.265) / Frame rate control (H.265); Smart VIQS; Smart P-picture control
Audio compressionG.726 (ADPCM) : 16 kbps / 32 kbps, G.711 : 64 kbps, AAC-LC : 64 kbps / 96 kbps / 128 kbps
Audio transmission modeOff / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
AudioMic/line in, audio out (ø3.5 mm, via WV-QCA501A); G.726 / G.711 / AAC-LC; half/full duplex
Supported protocolsIPv4/IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP/RTCP, SRTP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, NTCIP
Simultaneous usersUp to 14 users (Depends on network conditions)
SecurityFIPS 140-2 Level 3 (NXP EdgeLock SE050F), GlobalSign device certificate, HTTPS, IEEE 802.1X, brute-force protection, alteration detection, signed firmware
SD memory cardmicroSDXC 64-512 GB, microSDHC 4-32 GB, microSD 2 GB (option); manual / alarm (pre/post) / schedule REC, backup on network failure
Mobile terminal compatibilityiPad, iPhone (iOS 8.0 or later), AndroidTM terminals
ONVIF profileG, M, S, T
Alarm
Alarm source3 terminals input, VMD alarm, Command alarm, Audio detection alarm
Alarm actionsSDXC/SDHC/SD memory recording, E-mail notification,HTTP alarm notification Indication on browser, TCP alarm notification output
Input / output
Audio inputø3.5 mm stereo mini jack (via WV-QCA501A); plug-in power mic (4.0 V ±0.5 V) or line in approx. -10 dBV; impedance approx. 2 kΩ
Audio outputø3.5 mm stereo mini jack (Audio output is monaural.); Output impedance: Approx. 600 Ω (unbalanced); Output level: –20 dBV
External I/O terminalsALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1); ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)
Monitor outputNo
General
Power supplyPoE++
SafetyUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
EMCFCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035
Other standardNEMA TS2
Power Source and Power ConsumptionPoE++ (IEEE802.3bt compliant); DC 54 V : 850 mA/Approx. 45.9 W (Class 6 device)
Ambient Operating Temperature-50 °C to +60 °C (power on: -30 °C to +60 °C; +50 °C max with IR LED constantly on)
Ambient operating humidity10–100 % (no condensation)
Water and dust resistanceIP66, Type 4X (UL50E), NEMA 4X
Shock ResistanceIK10
Wind resistanceUp to 40 m/s
Dimensionsø167 mm × 205 mm (H)
Mass Approx. 3 kg (without attachment)
FinishAluminium die cast with heavy-salt resistance coating, i-PRO white; stainless steel outer screws; clear polycarbonate dome
AdditionalTamper-resistant enclosure
Salt damage resistance (ISO 14993)Yes
Important Safety Instructions1 шт.
Bit (hex wrench T20, 6.35 mm)1 шт.
RJ45 waterproof connector cap1 шт.
Waterproof rubber A1 шт.
Waterproof rubber B1 шт.
Fixing band (1 spare)2 шт.
Clamper1 шт.
Fixing screw (1 spare)2 шт.
Waterproof tape1 шт.
Rain wash coating label (ClearSight models only)1 шт.
* Equipment may change at the customer's request
